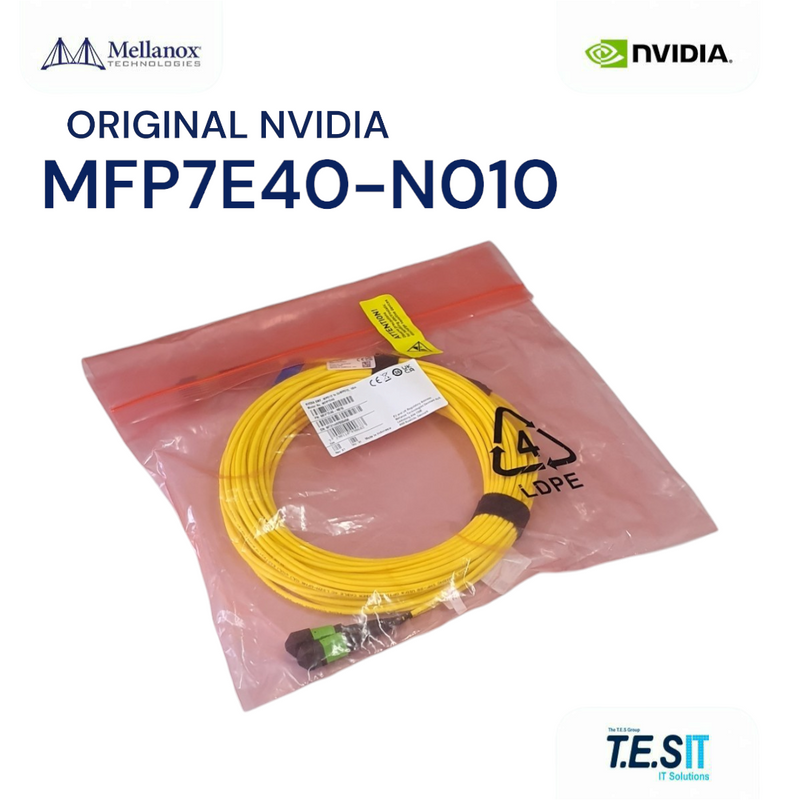

NVIDIA Mellanox MFP7E40-N010 400G SMF Splitter MPO12 to 2xMPO12 Cable 10m
Price: €120.00
Condition: NEW
In stock
Description
NVIDIA Mellanox MFP7E40-N010 Passive Splitter Fiber Cable, MPO12 APC to 2×MPO12 APC, 400Gb/s NDR, SMF, 10m: This is a 10-meter passive single-mode fiber (SMF) splitter cable engineered for 400Gb/s NDR InfiniBand and Ethernet point-to-multipoint interconnect. The MFP7E40-N010 (NVIDIA P/N 980-9I58N-00N010) is a passive optical fiber assembly that requires pluggable transceivers on both ends — it is not an active optical cable (AOC) and does not contain integrated optics. This is a new (factory-sealed) unit.
Engineering Context
The MFP7E40-N010 splits a single MPO12 APC port on the switch side into two MPO12 APC ports on the host side, enabling a 1:2 port breakout topology when paired with single-port OSFP DR8 transceivers. Single-mode fiber construction supports the longer reach budget required for SMF DR optics. The APC (Angled Physical Contact) end-faces reduce return loss versus UPC, which is mandatory for high-bit-rate single-mode optical links. The cable is fixed at 10m and is not field-terminable.
Deployment & Use Cases
Connecting a single 400Gb/s NDR switch port to two 200Gb/s NDR200 host adapters in spine-leaf or rail-optimized topologies. Breakout cabling for ConnectX-7 and BlueField-3 hosts paired with Quantum-2 NDR switches. AI training cluster fabrics where 1:2 splitting reduces switch port count. Cross-rack runs in HPC and hyperscale deployments where SMF reach is required.
Technical Specifications
- OEM: NVIDIA Mellanox
- Part Number: MFP7E40-N010
- NVIDIA Alt P/N: 980-9I58N-00N010
- Form Factor: MPO12 APC to 2× MPO12 APC (passive splitter)
- Data Rate: 400Gb/s NDR (splittable to 2× 200Gb/s NDR200)
- Cable Type: Single-Mode Fiber (SMF), passive
- Length: 10m
- Protocol: InfiniBand NDR / 400GbE Ethernet
- Connector End-Face: APC (Angled Physical Contact)
- Condition: New — factory-sealed, tested by T.E.S IT-SOLUTIONS
Compatibility & Constraints
Requires pluggable single-mode transceivers on both ends — for example, NVIDIA MMA4Z00-NS twin-port OSFP DR8 transceivers on the switch side and OSFP DR4 / QSFP112 DR4 transceivers on the host side. Compatible with NVIDIA Quantum-2 (QM9700, QM9790) and Spectrum-4 (SN5000 series) switches when configured for 1:2 splitter mode. Not compatible with multi-mode (MMF) transceivers — using SR optics on this SMF cable will not link. Not compatible with copper DAC or AOC ports; pluggable optical transceivers are mandatory. Not field-terminable; fixed 10m length.
Frequently Asked Questions (FAQ)
Q. What is the Length of the MFP7E40-N010?
The length of the MFP7E40-N010 is 10m.
Q. Is the MFP7E40-N010 supplied new or refurbished, and who supplies it?
The MFP7E40-N010 is supplied new by T.E.S IT-SOLUTIONS, lab-tested before dispatch and shipped from EU stock with 1-3 business day handling. Full listing and current pricing at tes-itsolutions.com.
Why Choose T.E.S IT-SOLUTIONS
T.E.S IT-SOLUTIONS inspects MPO end-faces and verifies optical insertion loss on every passive fiber assembly before shipment. We provide expert consultation on NDR fabric breakout design and ship globally with 1–3 day handling time. Visit tes-itsolutions.com for the full NVIDIA Mellanox catalog.
