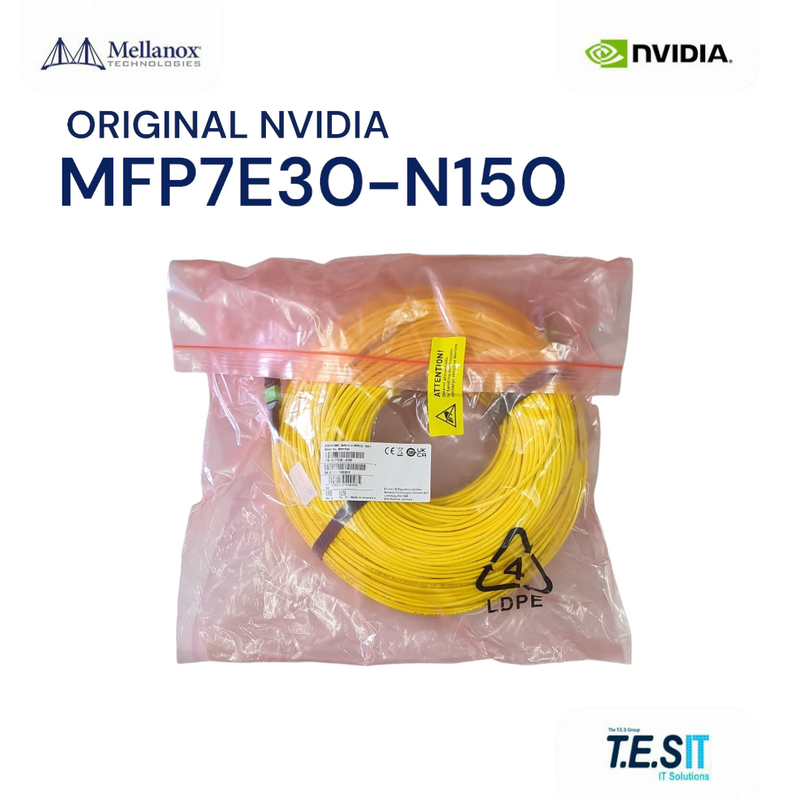

NVIDIA Mellanox MFP7E30-N150 400G NDR Passive MPO12 APC SMF Trunk 150m
Price: €350.00
Condition: NEW
In stock
Description
NVIDIA Mellanox MFP7E30-N150 400G NDR Passive Single-Mode Fiber Trunk Cable, MPO12 APC to MPO12 APC, 150m: This is a 150-meter passive single-mode fiber (SMF) trunk cable terminated with MPO12 APC connectors at both ends, intended for use with NVIDIA OSFP NDR-class 400Gb/s parallel-SMF transceivers. This is a straight 1:1 trunk — it is not a splitter and it does not contain transceivers, electronics, or active optics. This is a new, unused unit.
Engineering Context
The MFP7E30-N150 is part of NVIDIA's NDR structured-cabling family, designed to mate with parallel-SMF OSFP optical modules at 1310nm. APC end-faces are mandatory at this rate and reach to suppress reflections that would degrade the 400G PAM4 link. The 12-fiber array carries 4 send and 4 receive lanes for a 400G link, with the remaining fibers reserved per the standard MPO12 lane plan. The 150m length is intended for long structured runs between rooms or large data halls within the SMF reach budget of NDR optical modules.
Deployment & Use Cases
Long inter-row trunks between Quantum-2 NDR InfiniBand switches in adjacent data halls. Spine-to-leaf cabling in 400GbE NDR Ethernet fabrics where copper and AOC reach is exceeded. Cross-building HPC interconnects between GPU clusters and storage rooms. Pre-installed riser cabling in cabinets that will be lit up later with OSFP DR4/FR4-class optics.
Technical Specifications
- OEM: NVIDIA Mellanox
- Part Number: MFP7E30-N150
- Cable Type: Passive Trunk Fiber Cable (no electronics)
- Connectors: MPO12 APC to MPO12 APC (1:1 straight)
- Fiber Type: Single-Mode Fiber (SMF)
- End-Face: APC (Angled Physical Contact)
- Length: 150m
- Application Class: 400G NDR (parallel SMF)
- Protocol Support: InfiniBand NDR and 400GbE Ethernet, when paired with the matching OSFP transceivers
- Condition: New — Tested and certified by T.E.S IT-SOLUTIONS
Compatibility & Constraints
Compatible with NVIDIA OSFP NDR transceivers that use parallel-SMF MPO12 APC interfaces (DR4/FR4-class) and with NVIDIA Quantum-2 NDR switches and ConnectX-7 NDR adapters. Not a transceiver and not an Active Optical Cable — OSFP optics must be purchased separately for both ends. Not compatible with multi-mode-only OSFP modules (SR-class), with UPC end-face MPO equipment, or with QSFP-DD ports. The cable does not split a port; it is a straight 1:1 trunk only.
Frequently Asked Questions (FAQ)
Q. What is the Length of the MFP7E30-N150?
The length of the MFP7E30-N150 is 150m.
Q. Is the MFP7E30-N150 supplied new or refurbished, and who supplies it?
The MFP7E30-N150 is supplied new by T.E.S IT-SOLUTIONS, lab-tested before dispatch and shipped from EU stock with 1-3 business day handling. Full listing and current pricing at tes-itsolutions.com.
