NVIDIA Mellanox MTEF-KIT-S Static Rail Kit for SN2700 19in 430-800mm
Price: €650.00
Condition: NEW
In stock
Description

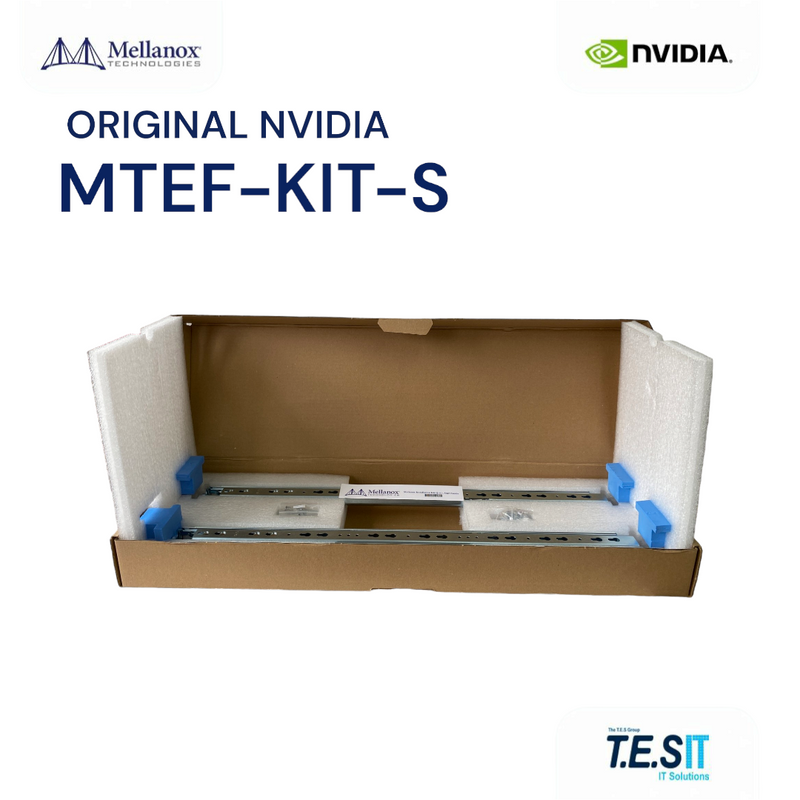

NVIDIA Mellanox MTEF-KIT-S Static Rack Installation Kit, P/N 930-9NRKT-00JT-000: This is a static rail-kit accessory for installing NVIDIA Mellanox SN2700 series and MSB/MSN/MSX67xx/17xx/14xx switches into a standard 19-inch rack. This is a fixed-mount mechanical kit with brackets and screws — it is not a sliding/ball-bearing rail kit and does not include a cable management arm. This is a brand new, factory-sealed unit.
Engineering Context
The MTEF-KIT-S is a static (non-sliding) rail kit that secures the chassis to the front and rear posts of a 19-inch EIA-310-D rack. It supports rack post-to-post depths from 430mm (short-depth racks) up to 800mm (standard-depth racks), giving deployment flexibility across older shallow racks and modern deep racks. As an OEM-original installation kit, fitment is verified to NVIDIA Mellanox factory tolerances, eliminating bracket interference and screw-hole misalignment commonly seen with universal third-party rails. The kit preserves factory front-to-back airflow alignment of the chassis.
Deployment & Use Cases
Rack-mounting an SN2700 Spectrum Ethernet switch in an enterprise data hall. New deployment of MSX67xx/17xx/14xx switches in HPC clusters. Replacement rail set when relocating an existing Mellanox switch to a different rack or facility. Spare-kit inventory for sites running large fleets of Mellanox SN2700/MSB/MSN/MSX hardware.
Technical Specifications
- OEM: NVIDIA Mellanox
- Part Number: MTEF-KIT-S
- NVIDIA P/N: 930-9NRKT-00JT-000
- Kit Type: Static (Fixed-Mount) Rail Kit
- Rack Format: 19-inch (EIA-310-D)
- Rack Depth Range: 430mm to 800mm (short and standard)
- Compatible Systems: SN2700, MSBxx, MSNxx, MSX67xx, MSX17xx, MSX14xx
- Mount Style: Fixed front and rear post brackets

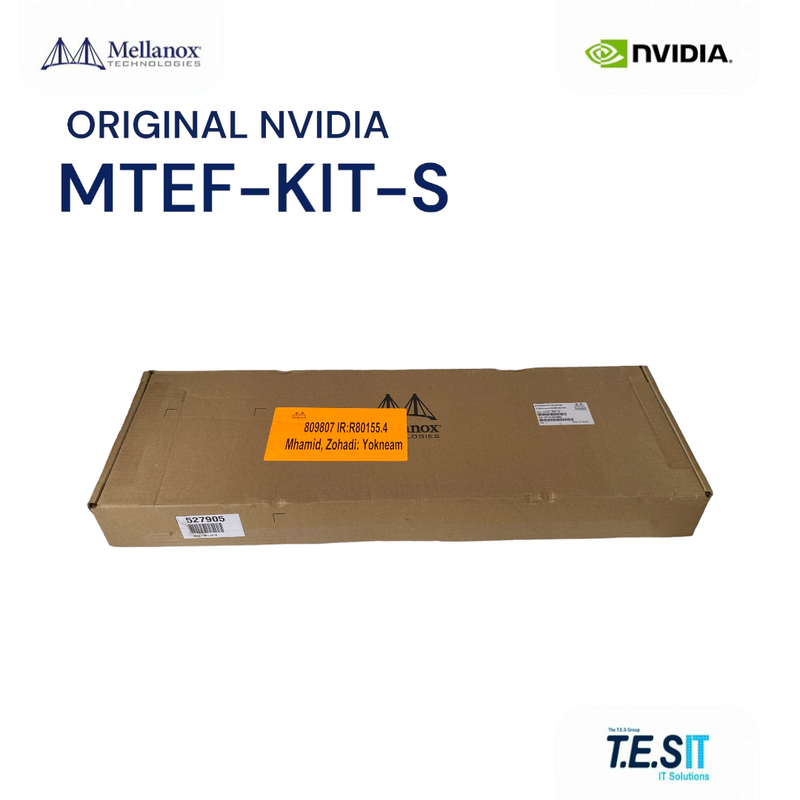

- Condition: New — Factory Sealed
Compatibility & Hard Constraints
Compatible with the NVIDIA Mellanox SN2700 series, MSBxx (Switch-IB), MSNxx (Spectrum), and MSX67xx/17xx/14xx chassis families. Fits 4-post 19-inch (EIA-310-D) racks with post-to-post depth between 430mm and 800mm. Not listed for the SN3700, SN3700C, SN4600, SN4600C or SN4700; NVIDIA lists MTEF-KIT-J for those systems. Not a sliding rail kit; the chassis cannot be extended out of the rack on rails. Cage nuts are not included unless specified on the NVIDIA-supplied parts list.
Frequently Asked Questions (FAQ)
Q. Which racks and systems is the NVIDIA MTEF-KIT-S listed for?

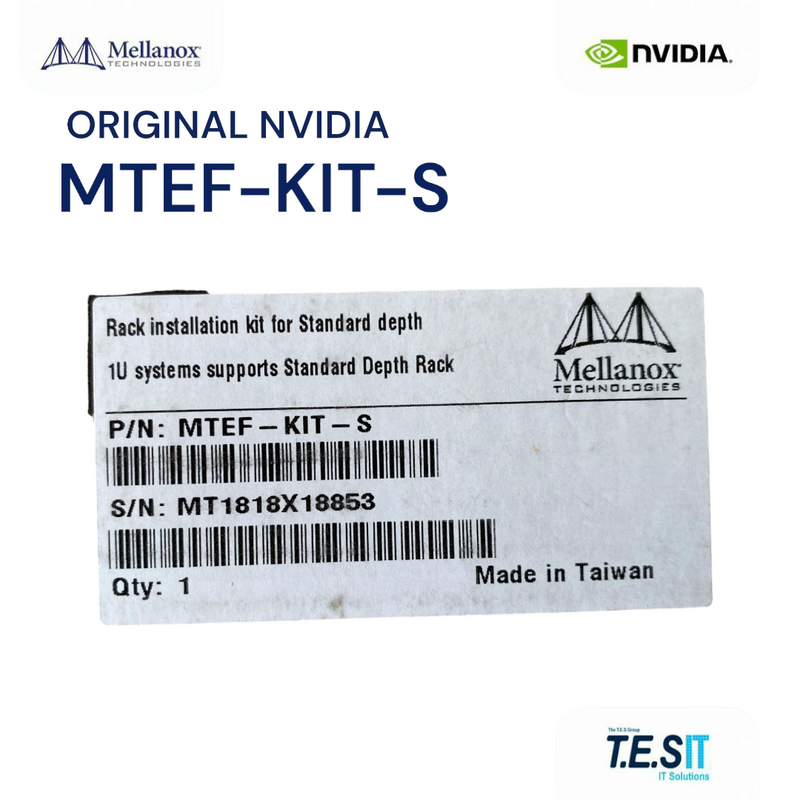

NVIDIA lists MTEF-KIT-S (NVIDIA P/N 930-9NRKT-00JT-000) as a rack installation kit for standard depth 1U systems, to be mounted into standard depth racks. NVIDIA hardware manuals list MTEF-KIT-S for the SN2700 and for SB77X0 switch systems.
Q. Does the MTEF-KIT-S fit an SN3700 or SN4600 switch?
No. For the SN3700, SN3700C, SN4600, SN4600C and SN4700, NVIDIA lists MTEF-KIT-J, not MTEF-KIT-S. MTEF-KIT-S is listed for 1U systems such as the SN2700 and SB77X0.
Q. What condition is the MTEF-KIT-S supplied in by T.E.S IT-SOLUTIONS?
T.E.S IT-SOLUTIONS (tes-itsolutions.com) supplies this MTEF-KIT-S new and factory-sealed, with compatibility verification before shipment, 1-3 day order handling and global delivery.
