NVIDIA Mellanox MSN3700-VS2RC Spectrum-2 200GbE 32-port QSFP56 Cumulus C2P
Price: €12,900.00
Condition: Refurbished
In stock
Description

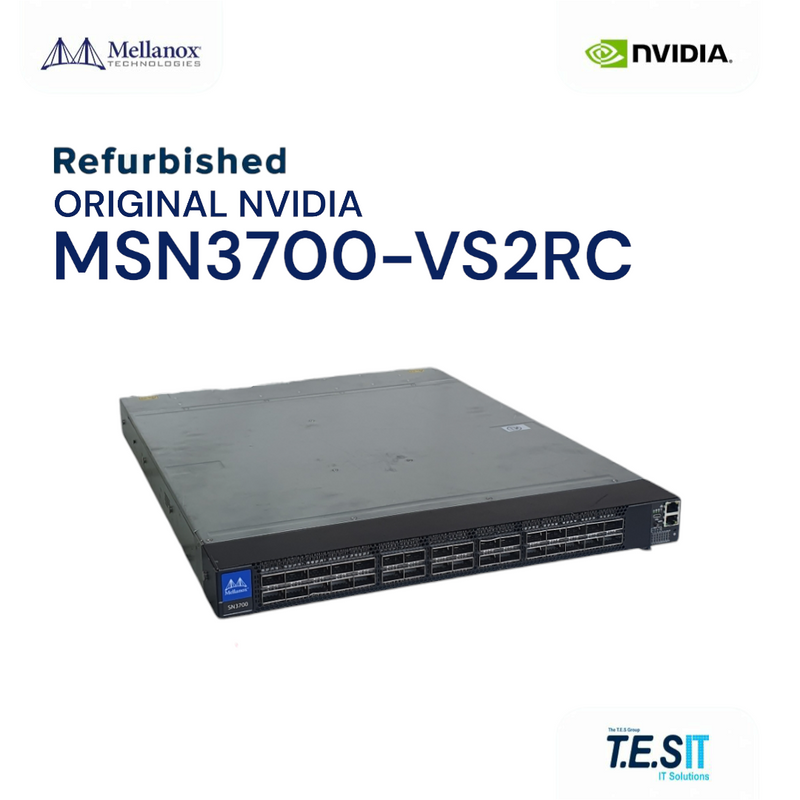

The NVIDIA Mellanox® MSN3700-VS2RC is a refurbished 1U 200GbE Open Ethernet leaf/spine switch built on the Spectrum-2 ASIC. It is a top-of-rack and aggregation platform for high-throughput data center fabrics. It is not an InfiniBand switch and does not include InfiniBand subnet manager licensing. Each unit ships in Refurbished condition, functionally tested by TES with minimal cosmetic wear.
Engineering context. The Spectrum-2 ASIC delivers 6.4 Tb/s of switching capacity and a packet rate of up to 8.33 Bpps across 32 × QSFP56 ports at 200 Gb/s line rate. Each QSFP56 cage supports 4×50G PAM4 lanes, with breakout to 2×100G or 4×50G/8×25G subject to OS configuration. Cut-through latency on Spectrum-2 is in the ~300 ns range port-to-port. Airflow is C2P (Connector-to-Power, back-to-front); the unit must be deployed in a rack matching this airflow direction.
Deployment and use cases. Typical roles for the MSN3700-VS2RC include: 200GbE spine in a leaf-spine clos fabric, top-of-rack aggregator for ConnectX-5/6/7 hosts running RoCEv2, AI/ML training pods (PyTorch/Megatron-LM distributed training), HPC MPI clusters, NVMe-oF storage backbones, and high-frequency trading sync layers using SyncE and PPS. With Secure Boot, it is also suitable for regulated enterprise and telco edge deployments.
Technical specifications.
- Switching ASIC: NVIDIA Mellanox Spectrum-2
- Switching capacity: 6.4 Tb/s full-duplex
- Packet rate: up to 8.33 Bpps
- Ports: 32 × QSFP56 (200 GbE per port)
- Operating system: Cumulus Linux
- Airflow: C2P (Connector-to-Power, back-to-front)
- Power supply: dual hot-swappable AC PSUs
- Cooling: hot-swappable fan modules
- Control-plane CPU: x86 dual-core
- Timing & security: SyncE, PPS, Secure Boot
- Form factor: 1U rackmount
- Compliance: RoHS 6
Compatibility and constraints. The MSN3700-VS2RC interoperates with NVIDIA Mellanox QSFP56 200GbE optics, AOCs, and DACs, and is qualified end-to-end with ConnectX-5, ConnectX-6, and ConnectX-6 Dx adapters. Breakout cabling for 2×100G or 4×50G is supported but requires a compatible breakout cable and OS-side port splitting. Airflow is fixed at C2P — do not deploy in a rack with the opposite airflow polarity, as thermal protection will throttle or shut down the unit. Ships with Cumulus Linux preinstalled. Cumulus licensing transferability is not guaranteed and is the buyer's responsibility to validate.
Frequently Asked Questions (FAQ)
Q. What is the MSN3700-VS2RC?
The MSN3700-VS2RC is a Spectrum-2 based SN3700 Open Ethernet switch with 32 QSFP56 ports at up to 200GbE, Cumulus Linux pre-loaded, C2P airflow.
Q. Can Cumulus Linux be replaced with a different NOS?
Yes, since the platform is ONIE-based, but reinstalling requires a supported ONIE image.
Q. Will T.E.S IT-SOLUTIONS confirm the configuration of MSN3700-VS2RC before shipping?
Yes. T.E.S IT-SOLUTIONS (tes-itsolutions.com) inspects each unit and verifies vendor markings before dispatch from EU stock.
Why TES. T.E.S IT-SOLUTIONS is a B2B reseller of refurbished NVIDIA Mellanox enterprise networking hardware. Every unit is bench-tested under load, port-validated, PSU-redundancy-checked, and shipped from Israel with 1–3 business day handling. International shipping typically lands in 8–13 days, professionally packed.
