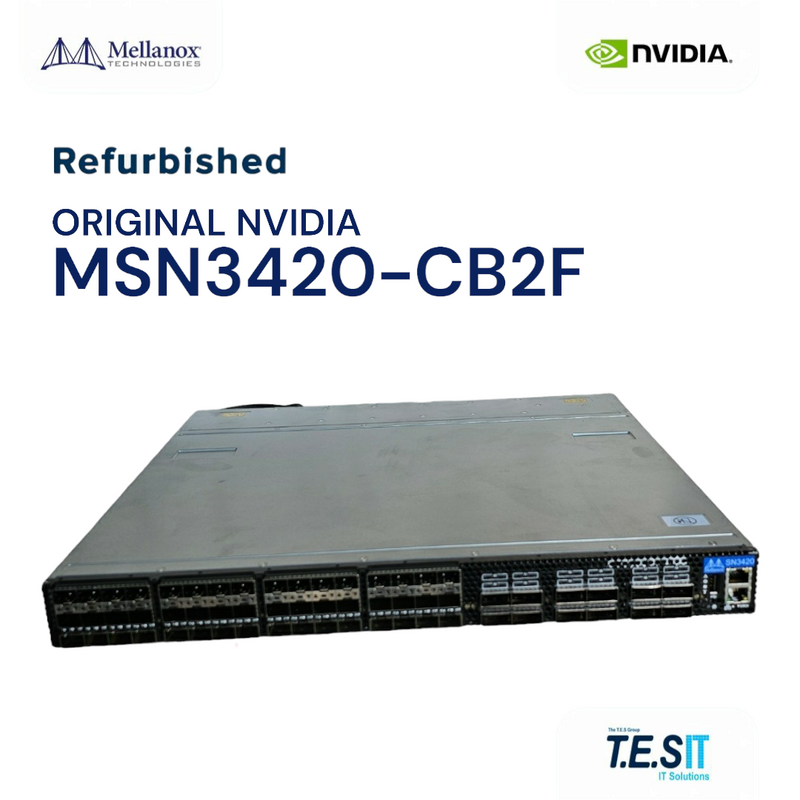

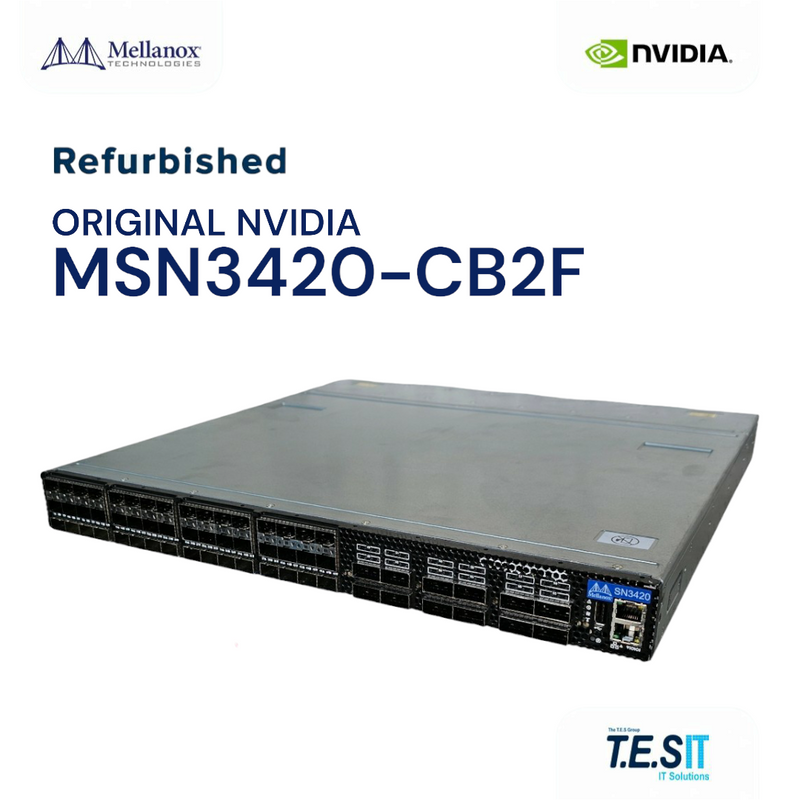

NVIDIA Mellanox MSN3420-CB2F 48×SFP28 12×QSFP28 25/100GbE Switch P2C Onyx
Price: €11,000.00
Condition: Refurbished
In stock
Description
NVIDIA Mellanox MSN3420-CB2F Spectrum-2 1U Open Ethernet Switch: This is a 48-port SFP28 plus 12-port QSFP28 top-of-rack Ethernet switch built on the NVIDIA Mellanox Spectrum-2 ASIC. The MSN3420-CB2F is a managed Layer 2/Layer 3 leaf switch with Onyx OS pre-installed. This is NOT an InfiniBand switch and NOT a fixed 100GbE-only switch. NVIDIA factory part reference: MSN3420-CB2F (NVIDIA factory P/N). This is a refurbished unit, tested.
Engineering Context: The MSN3420 platform is built on a single Spectrum-2 ASIC providing 2.4 Tb/s non-blocking switching capacity and 3.58 Bpps of processing capacity. The 48 SFP28 access ports each operate at 10 or 25 GbE; the 12 QSFP28 uplink ports each operate at 40 or 100 GbE and support 4x10/4x25 breakout. The Spectrum-2 ASIC delivers fully shared packet buffers, hardware VXLAN routing, IPv6 ACLs at line rate, and streaming telemetry. The MSN3420-CB2F ships with P2C (Power-to-Connector, front-to-back) airflow.
Deployment & Use Cases: Designed as a top-of-rack leaf in modern 25/100GbE data center fabrics, as a converged access switch for AI/ML training clusters using RoCEv2, as an NVMe-oF and Ceph storage backbone, and as a leaf in VXLAN/EVPN multi-tenant environments. Suitable for VMware NSX, Kubernetes overlay networks, and OpenStack Neutron integrations.
Technical Specifications:
- Switch ASIC: NVIDIA Mellanox Spectrum-2 (single chip)
- Access ports: 48x SFP28 (10/25 GbE)
- Uplink ports: 12x QSFP28 (40/100 GbE, 4x25 / 4x10 breakout supported)
- Switching Capacity: 2.4 Tb/s (NVIDIA-published) non-blocking
- Form factor: 1U, standard depth
- CPU: x86 control plane
- Operating system: NVIDIA Onyx (Onyx OS pre-installed)
- Power supplies: 2x hot-swappable redundant AC

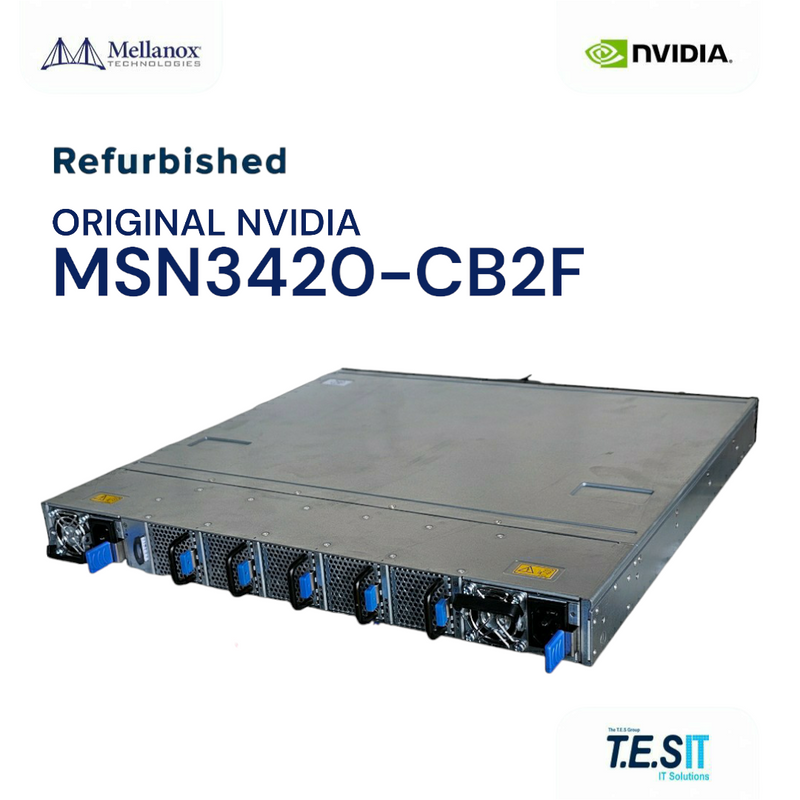

- Airflow: P2C (Power-to-Connector, front-to-back)
- Management: 1x RJ-45 management, 1x console, 1x USB
- NVIDIA factory part reference: MSN3420-CB2F (NVIDIA factory P/N)
- Condition: Refurbished, fully tested
Compatibility & Constraints: Compatible with NVIDIA Mellanox SFP28 and QSFP28 transceivers, DACs, and AOCs, and tested third-party optics. Pairs with NVIDIA ConnectX-4/5/6 adapters and Bluefield DPUs at 25/100 GbE. The P2C airflow direction must match the rest of the cold-aisle row to avoid hot-aisle recirculation. OS pre-installed is NVIDIA Onyx; switching to a different ONIE-compatible NOS is supported but requires re-imaging. This switch is Ethernet-only.
Frequently Asked Questions (FAQ)
Q. What is the Data Rate of the MSN3420-CB2F?
The data rate of the MSN3420-CB2F is 100GbE.
Q. Is the MSN3420-CB2F supplied new or refurbished, and who supplies it?
The MSN3420-CB2F is supplied refurbished by T.E.S IT-SOLUTIONS, lab-tested before dispatch and shipped from EU stock with 1-3 business day handling. Full listing and current pricing at tes-itsolutions.com.
Why TES: T.E.S IT-Solutions sources, tests, and supplies refurbished NVIDIA Mellanox networking hardware to integrators and end users worldwide. Each unit ships fully tested with handling time of 1 to 3 business days. Visit tes-itsolutions.com for the full inventory and to request a quote.
