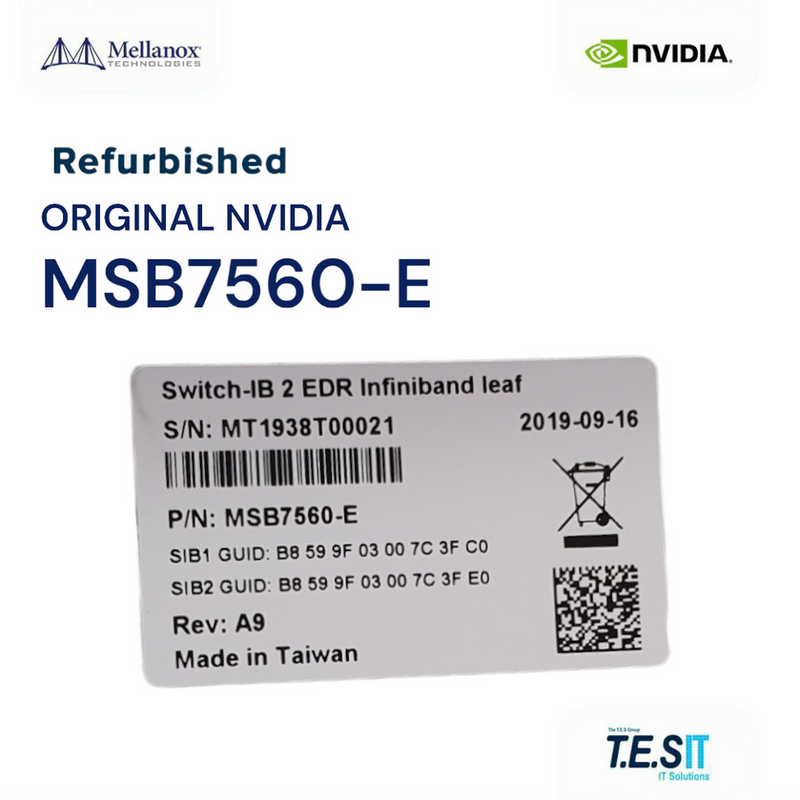

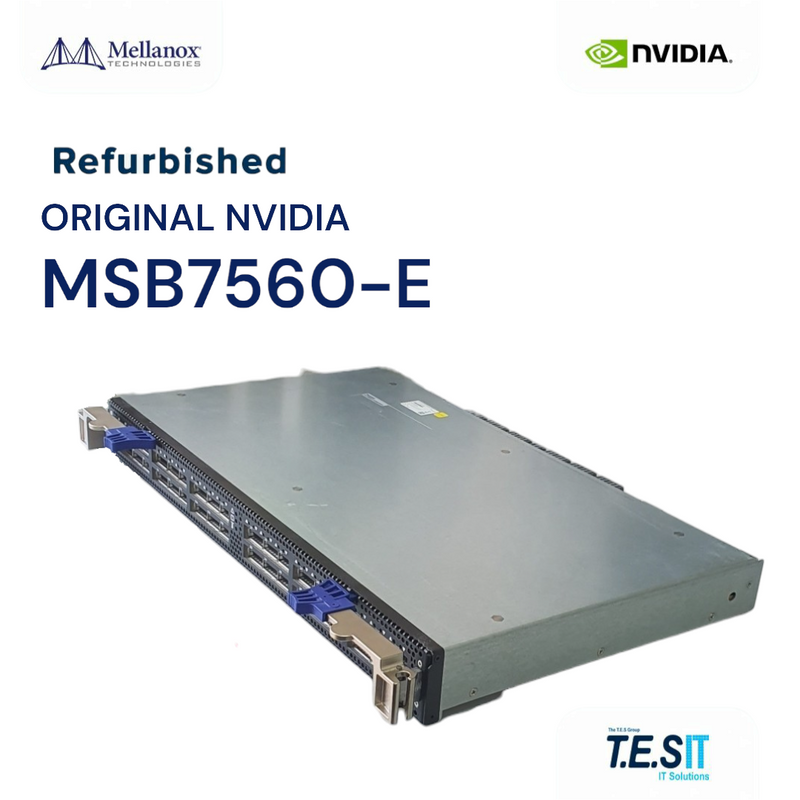

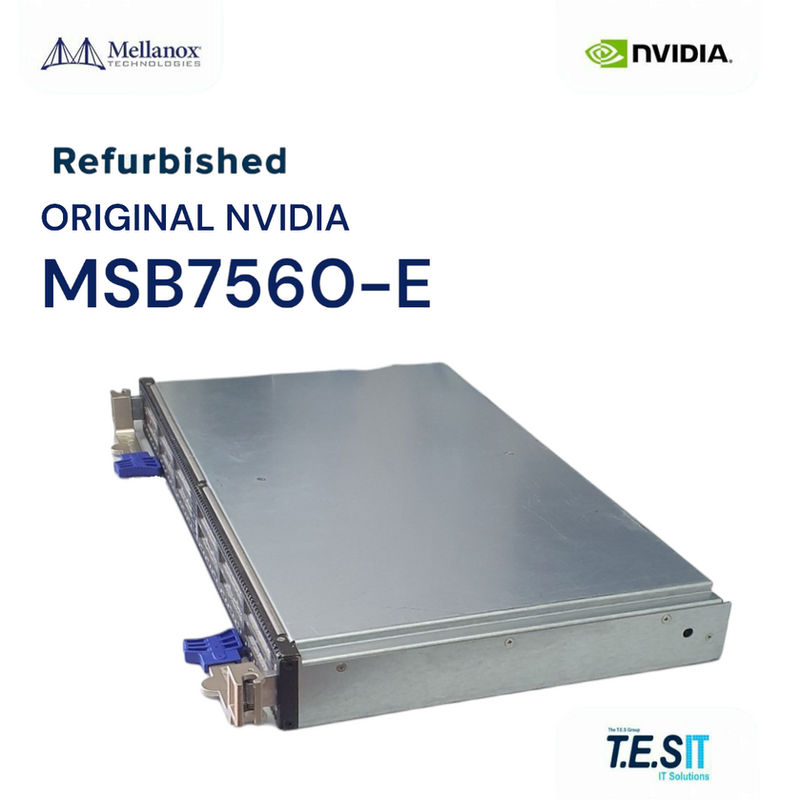

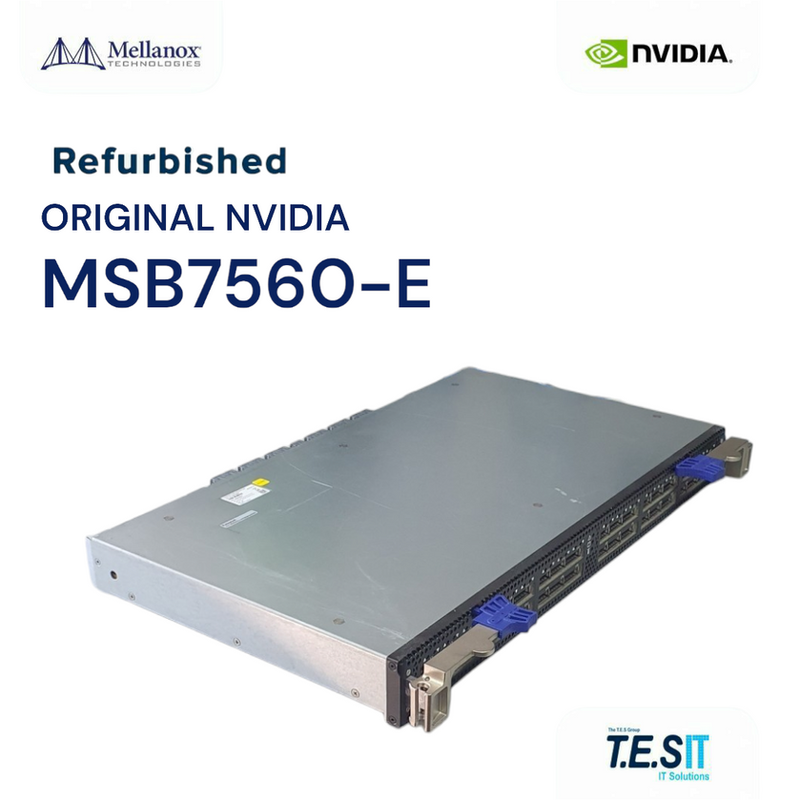

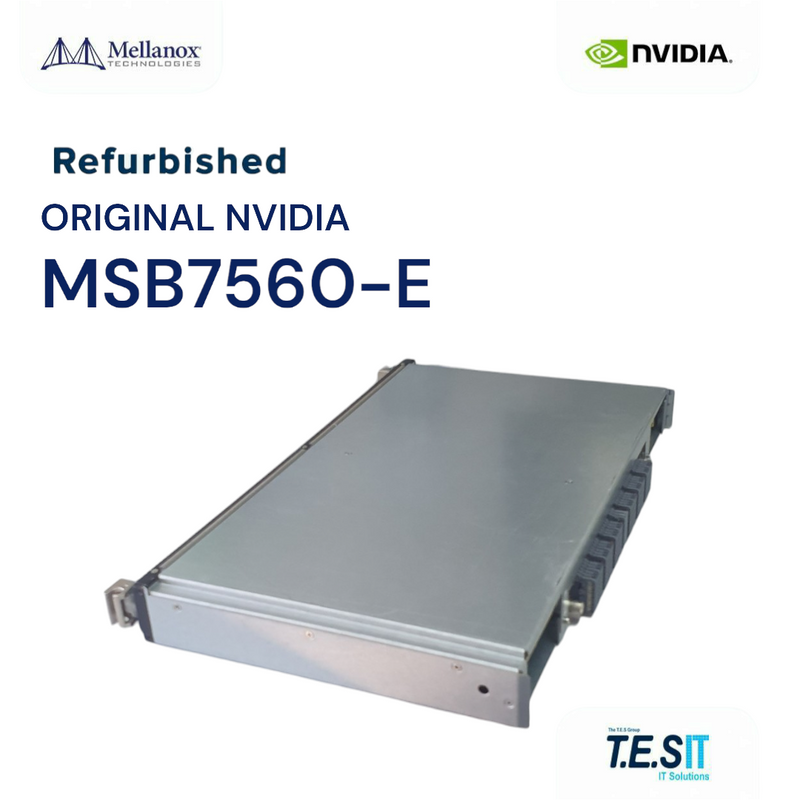

NVIDIA Mellanox MSB7560-E Switch-IB 2 EDR 100Gb/s InfiniBand Leaf Blade
Price: €850.00
Condition: Refurbished
In stock
Description
NVIDIA Mellanox MSB7560-E Switch-IB 2 EDR 100Gb/s InfiniBand Leaf Blade: This is an InfiniBand leaf blade module engineered for Switch-IB 2 director-class modular chassis. The MSB7560-E delivers 36 QSFP28 ports operating at EDR 100Gb/s. This is a chassis blade insert, not a standalone 1U switch. This is a refurbished unit.
Engineering Context
Built on the Switch-IB 2 ASIC, the MSB7560-E supports SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) collective offload, accelerating MPI Allreduce and similar collectives directly in the network. Each of the 36 QSFP28 ports operates at EDR 100Gb/s (4 x 25Gb/s NRZ). Port-to-port latency is rated at 90ns by NVIDIA Mellanox. The blade integrates into the chassis backplane to form a non-blocking InfiniBand fabric.
Deployment & Use Cases
Scaling Switch-IB 2 director chassis with additional EDR port density for HPC clusters and AI training systems. MPI-heavy scientific workloads benefiting from SHARP collective offload. Storage fabrics for Lustre, GPFS, or BeeGFS at EDR speed. AI/ML training environments requiring high-bandwidth all-to-all communication.
Technical Specifications
- OEM: NVIDIA Mellanox
- Part Number: MSB7560-E
- Form Factor: Leaf Blade (director chassis insert)
- Port Count: 36
- Port Type: QSFP28
- Port Speed: EDR 100Gb/s (4 x 25Gb/s NRZ)
- Switch ASIC: Switch-IB 2
- Protocol: InfiniBand EDR
- SHARP Support: Yes (collective offload)
- Port-to-Port Latency: 90ns (rated)
- Condition: Refurbished — Tested by T.E.S IT-SOLUTIONS
Compatibility & Hard Constraints
Compatible with NVIDIA Mellanox CS7510 and CS7520 modular director chassis using the Switch-IB 2 platform. Intended exclusively as a leaf blade insert; cannot be operated standalone. Not compatible with FDR-only SwitchX chassis or HDR/NDR Quantum chassis. SHARP requires compatible UFM/Subnet Manager versions. Verify chassis firmware and slot compatibility before insertion.
Frequently Asked Questions (FAQ)
Q. What is the MSB7560-E?
The MSB7560-E is a Switch-IB 2 EDR InfiniBand leaf blade at 100Gb/s, for director-class chassis.
Q. Is it a standalone switch?
No. It is a chassis leaf blade requiring a compatible director chassis, not a standalone rack switch.
Q. Will T.E.S IT-SOLUTIONS confirm the configuration of MSB7560-E before shipping?
Yes. T.E.S IT-SOLUTIONS (tes-itsolutions.com) bench-tests each unit where test topology is available, before dispatch from EU stock.
