NVIDIA Mellanox MSB7510-E2 Switch-IB2 EDR Leaf Blade 36 QSFP28
Price: €500.00
Condition: Refurbished
In stock
Description

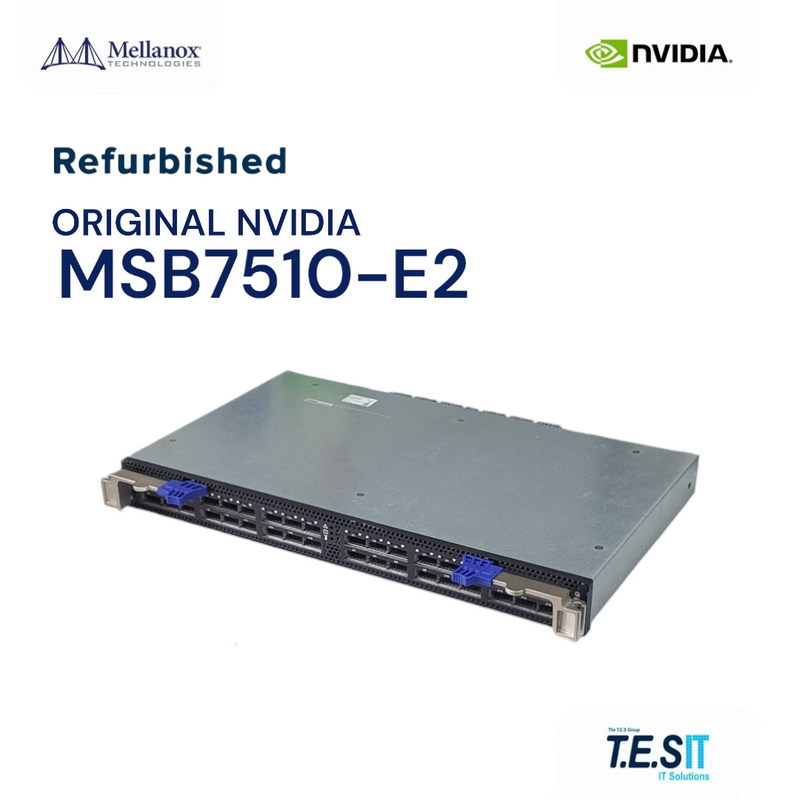

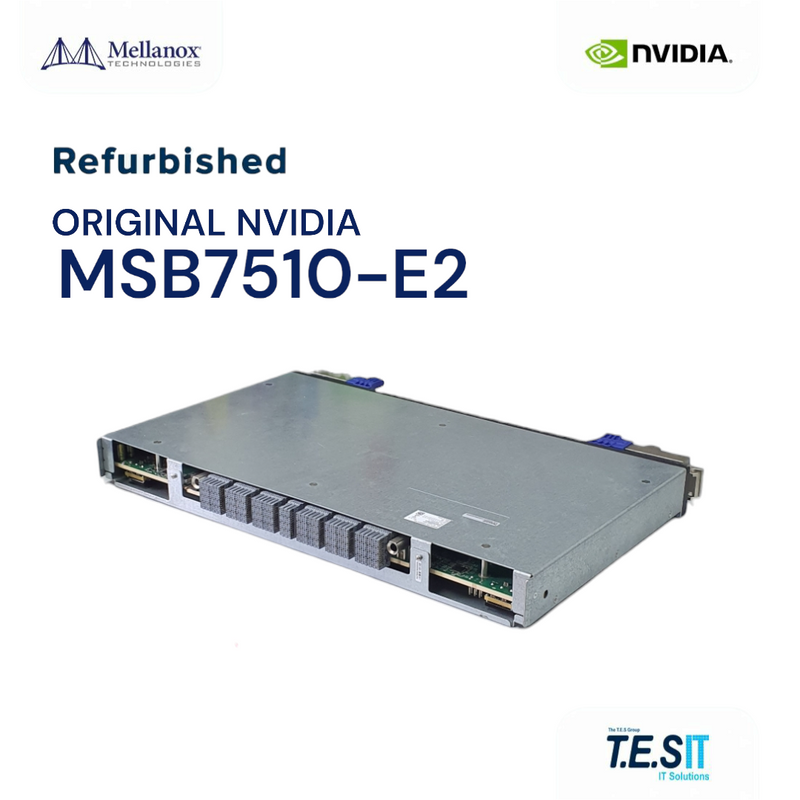

NVIDIA Mellanox MSB7510-E2 Switch-IB™ 2 EDR InfiniBand Leaf Blade — 36 QSFP28 Ports at 100Gb/s, Refurbished.
The MSB7510-E2 is a Switch-IB 2 EDR InfiniBand leaf blade for the CS7500-series modular director chassis. It IS a modular line card with 36 QSFP28 ports at 100Gb/s EDR per port. It is NOT a 1U fixed-form switch (for that, see SB7800/SB7700), an Ethernet line card, or a spine blade — installs only as a leaf blade in a compatible Switch-IB 2 director chassis.
Engineering Context. Built on the Switch-IB 2 ASIC family, this leaf blade delivers 36 EDR ports × 100Gb/s = 3.6 Tb/s aggregate bandwidth per blade. Switch-IB 2 supports adaptive routing, congestion control, and SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) for in-network collectives, which accelerates MPI all-reduce and similar collective operations on AI/HPC workloads. Sub-microsecond switching latency typical of Switch-IB 2.
Deployment & Use Cases. Modular EDR fabric expansion in CS7500-family director chassis, HPC clusters running MPI workloads, AI training fabrics that benefit from SHARP collectives, enterprise storage networks running Lustre or GPFS over InfiniBand, and spare-blade inventory for production CS7500 deployments.
Technical Specifications:
- Switch silicon: Switch-IB 2
- Protocol: InfiniBand EDR
- Per-port rate: 100 Gb/s
- Port count: 36 QSFP28
- Aggregate bandwidth: 3.6 Tb/s per blade
- Form factor: Modular leaf line card
- Target chassis: CS7500-series director switches
- Adaptive routing: Supported
- Congestion control: Supported
- SHARP collectives: Supported on Switch-IB 2
- OEM: NVIDIA Mellanox
Compatibility & Constraints. Installs in CS7500-series Switch-IB 2 director chassis only. Will NOT fit Spectrum Ethernet chassis, Quantum HDR/NDR switches, or fixed 1U form factors such as SB7800/SB7700. Requires a director chassis with management modules and PSUs to function — not a standalone switch. Pair with EDR-capable QSFP28 cables (MCP1600 series DACs or MFA1A00 AOCs).
Frequently Asked Questions (FAQ)
Q. What is the MSB7510-E2?
The MSB7510-E2 is a Switch-IB 2 EDR InfiniBand leaf blade with 36 QSFP28 ports at 100Gb/s, for director-class chassis.
Q. Is it a standalone switch?
No. It is a chassis leaf blade requiring a compatible director chassis, not a standalone rack switch.
Q. Will T.E.S IT-SOLUTIONS confirm the configuration of MSB7510-E2 before shipping?
Yes. T.E.S IT-SOLUTIONS (tes-itsolutions.com) bench-tests each unit where test topology is available, checks EEPROM/vendor data, before dispatch from EU stock.
Why TES. Each MSB7510-E2 leaf blade is inspected and electrically tested by T.E.S IT-SOLUTIONS before shipment, including port-link validation in a director chassis, with 1–3 business day handling from EU stock.
