NVIDIA Mellanox MFA7U10-H010 OSFP 400G to 2x QSFP56 200G IB AOC Cable 10m

NVIDIA Mellanox® MFA7U10-H010NVIDIA Mellanox® MFA7U10-H010NVIDIA Mellanox® MFA7U10-H010NVIDIA Mellanox® MFA7U10-H010NVIDIA Mellanox® MFA7U10-H010

Price: €900.00

Condition: Refurbished

In stock

Request a Quote

Description

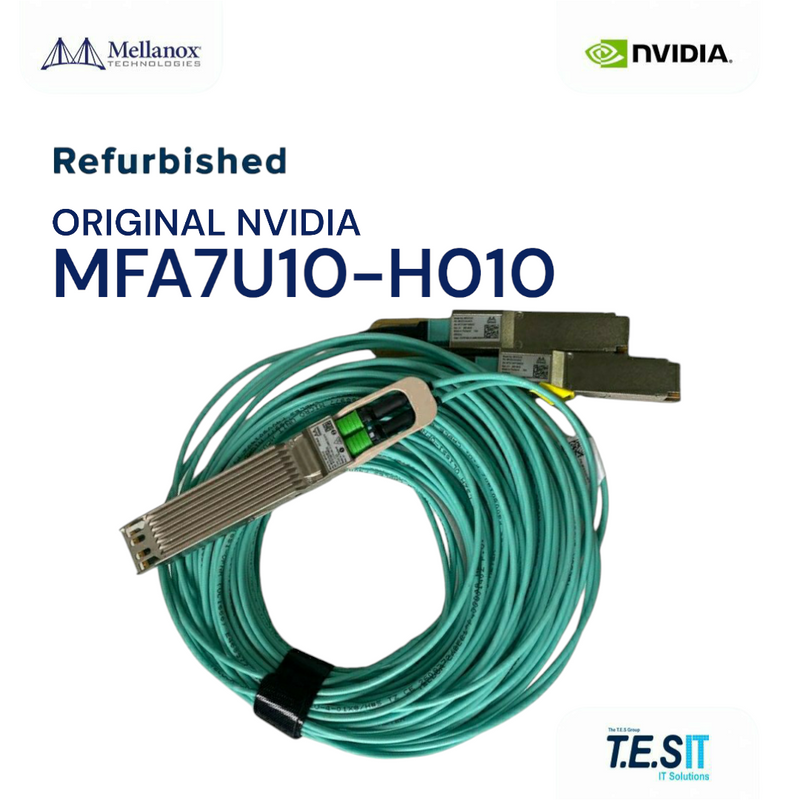

NVIDIA Mellanox MFA7U10-H010 InfiniBand 400G OSFP to 2x 200G QSFP56 Active Optical Splitter, 10m: This is a 10-meter active optical splitter cable that converts a single 400Gb/s twin-port OSFP InfiniBand interface into two 200Gb/s QSFP56 endpoints. The integrated optics re-time and electrically isolate each lane group. This is a fixed-length integrated assembly, not a transceiver with a detachable patch cord. This is a refurbished unit.

Engineering Context

The MFA7U10-H010 carries 8x 50Gb/s PAM4 lanes on the OSFP side, mapped as two 4-lane HDR groups (2x 200Gb/s) on the QSFP56 side. At 10 meters it bridges cross-rack and short cross-row spans where copper splitters cannot maintain signal integrity at 400G aggregate. The OSFP form factor includes an integrated finned heat sink for active power dissipation; ensure the host switch maintains MSA-compliant airflow. Active optics provide complete EMI immunity, low weight, and tighter bend radius (30mm minimum recommended) than equivalent copper, easing routing through dense cable trays.

Deployment & Use Cases

Connecting NVIDIA Quantum-2 (NDR) switch OSFP ports configured in 2x HDR split mode to ConnectX-6 / ConnectX-6 Dx VPI HCAs across racks. Doubling effective port count of OSFP-based InfiniBand spine or leaf switches feeding HDR compute nodes. AI/ML training fabrics that bridge a Quantum-2 backbone to existing HDR Quantum (QM87xx) edge over 10m cross-rack runs. Storage Area Networks running NVMe-oF over RDMA between mixed-generation aisles.

Technical Specifications

  • OEM: NVIDIA Mellanox
  • Part Number: MFA7U10-H010
  • Form Factor: OSFP to 2x QSFP56 (Splitter)
  • Data Rate: 400Gb/s split to 2x 200Gb/s InfiniBand HDR
  • Lane Mapping: 8x 50Gb/s PAM4 (OSFP) to 2x 4x 50Gb/s PAM4 (QSFP56)
  • Cable Type: Active Optical Cable (AOC)
  • Length: 10m
  • Jacket: LSZH
  • Media: Multimode Fiber (MMF)
  • Protocol: InfiniBand HDR (split from twin-port OSFP)
  • Bend Radius: 30mm minimum
  • Condition: Refurbished — Tested by T.E.S IT-SOLUTIONS

Compatibility & Hard Constraints

Compatible with NVIDIA Quantum-2 (NDR) switches with OSFP ports configured for 2x200G HDR split mode, NVIDIA Quantum HDR (QM87xx series) on the QSFP56 side, and ConnectX-6 / ConnectX-6 Dx VPI HCAs. Requires switch firmware that supports HDR split-mode signaling. Not compatible with QSFP-DD ports (OSFP is mechanically incompatible). Not validated for Ethernet-only platforms. Fixed 10m length — not field-shortenable.

Frequently Asked Questions (FAQ)

Q. What is the Length of the MFA7U10-H010?
The length of the MFA7U10-H010 is 10m.

Q. Is the MFA7U10-H010 supplied new or refurbished, and who supplies it?
The MFA7U10-H010 is supplied refurbished by T.E.S IT-SOLUTIONS, lab-tested before dispatch and shipped from EU stock with 1-3 business day handling. Full listing and current pricing at tes-itsolutions.com.

Why Choose T.E.S IT-SOLUTIONS

T.E.S IT-SOLUTIONS tests every splitter AOC for both QSFP56 leg link integrity, optical power, and connector condition before shipment. We provide expert consultation on InfiniBand HDR/NDR fabric cabling, global shipping with 1–3 day handling, and comprehensive warranty. Visit tes-itsolutions.com.

Testing & Condition Verification

Every unit is bench-tested by T.E.S IT-SOLUTIONS before dispatch: per-port link verification, power supply and fan diagnostics, firmware confirmation and full cosmetic inspection. Airflow direction is checked and recorded so the unit matches your rack's hot/cold aisle layout. Warranty coverage is included on every unit.

Shipping, Handling & Technical Support

1-3 business day handling from EU stock, professional anti-static packaging and tracked global B2B shipping. Technical consultation on fabric design, cabling and transceiver selection is available from our NVIDIA Mellanox networking team at tes-itsolutions.com.
