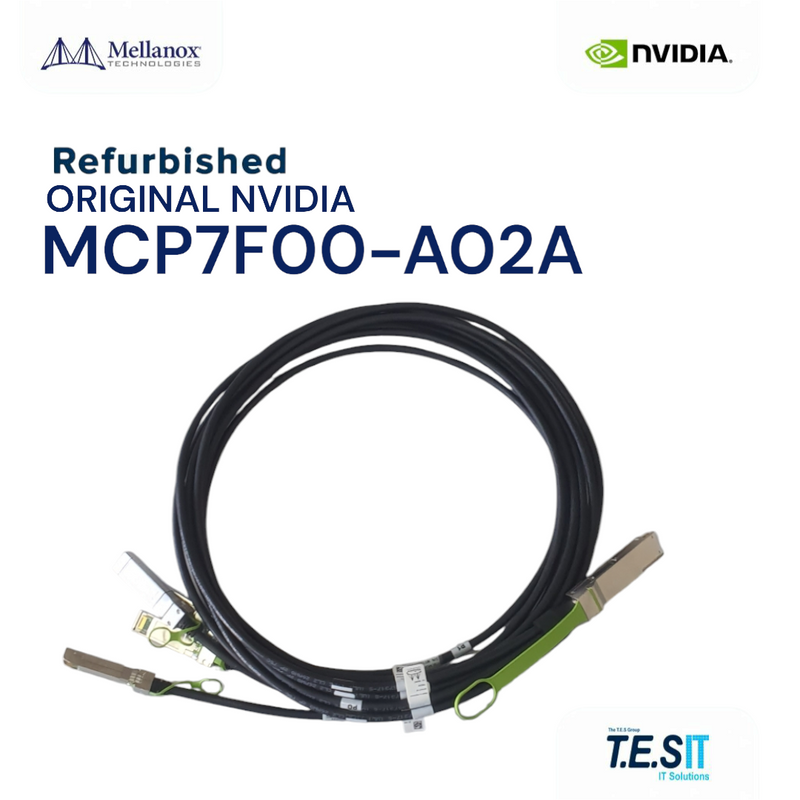

NVIDIA Mellanox MCP7F00-A02A QSFP28 to 4xSFP28 100GbE Breakout DAC Cable 2.5m
Price: €165.00
Condition: Refurbished
In stock
Description
NVIDIA Mellanox MCP7F00-A02A QSFP28 to 4xSFP28 100GbE Hybrid Breakout DAC, 2.5m, 30 AWG: This is a 2.5-meter passive copper hybrid breakout cable that splits a single QSFP28 100GbE port into four independent SFP28 25GbE links. NVIDIA P/N 980-9I48P-00C02A. This is a passive Direct Attach Copper assembly with no electronics, retimers, or DSPs. This is NOT an active optical cable, NOT a 1:1 QSFP28 cable, and NOT a fiber optic transceiver. Condition: Refurbished — tested by T.E.S IT-SOLUTIONS.
Engineering Context
The MCP7F00-A02A is built on 30 AWG twinax conductors and operates as a pure electrical signal path. Aggregated bandwidth is 100Gb/s, lane structure is 4x25Gb/s NRZ, with each SFP28 leg presenting a single 25Gb/s lane. Power consumption is 0W on the cable itself; only the host ports draw power. Latency is bounded by physical propagation only — typically a few nanoseconds per meter — with no protocol-layer processing introduced by the cable.
Deployment & Use Cases
Top-of-Rack QSFP28 switch ports fanned out to four 25GbE servers, NICs, or storage targets. Spectrum SN2000/SN3000 switch port density expansion onto ConnectX-4 Lx, ConnectX-5 EN, or ConnectX-6 Dx 25GbE adapters. Storage front-end aggregation for SAN and NAS controllers using SFP28 ports. Enterprise leaf-spine fabrics consolidating 25GbE endpoints into a 100GbE uplink trunk.
Technical Specifications
- OEM: NVIDIA Mellanox
- Part Number: MCP7F00-A02A (NVIDIA P/N 980-9I48P-00C02A)
- Form Factor: QSFP28 to 4x SFP28 (Hybrid Breakout)
- Cable Type: Passive Copper DAC (PCC Hybrid)
- Data Rate: 100GbE aggregated / 4x 25GbE per leg
- Lane Configuration: 4 lanes x 25Gb/s NRZ
- Length: 2.5m
- Wire Gauge: 30 AWG
- Power: 0W (passive)
- Condition: Refurbished — tested by T.E.S IT-SOLUTIONS
Compatibility & Hard Constraints
Compatible with NVIDIA Mellanox Spectrum Ethernet switches with QSFP28 ports configured for 4x25GbE breakout, and with ConnectX-4 Lx, ConnectX-5, and ConnectX-6 Dx adapters supporting SFP28 25GbE. The QSFP28 host port must be explicitly configured for breakout / fan-out mode; the cable cannot force this on its own. Not for 1:1 QSFP28-to-QSFP28 100GbE links. Not an InfiniBand cable. Not for 200GbE, 400GbE, or 50G PAM4 lanes. Fixed 2.5m length, no spooling possible.
Frequently Asked Questions (FAQ)
Q. What is the Data Rate of the MCP7F00-A02A?
The data rate of the MCP7F00-A02A is 100GbE.
Q. Is the MCP7F00-A02A supplied new or refurbished, and who supplies it?
The MCP7F00-A02A is supplied refurbished by T.E.S IT-SOLUTIONS, lab-tested before dispatch and shipped from EU stock with 1-3 business day handling. Full listing and current pricing at tes-itsolutions.com.
Why Choose T.E.S IT-SOLUTIONS
Every breakout DAC is bench-tested for lane integrity, branch continuity, and connector retention before shipment. T.E.S IT-SOLUTIONS handles units in 1-3 business days with secure international shipping and expert support on Spectrum and ConnectX deployments.
