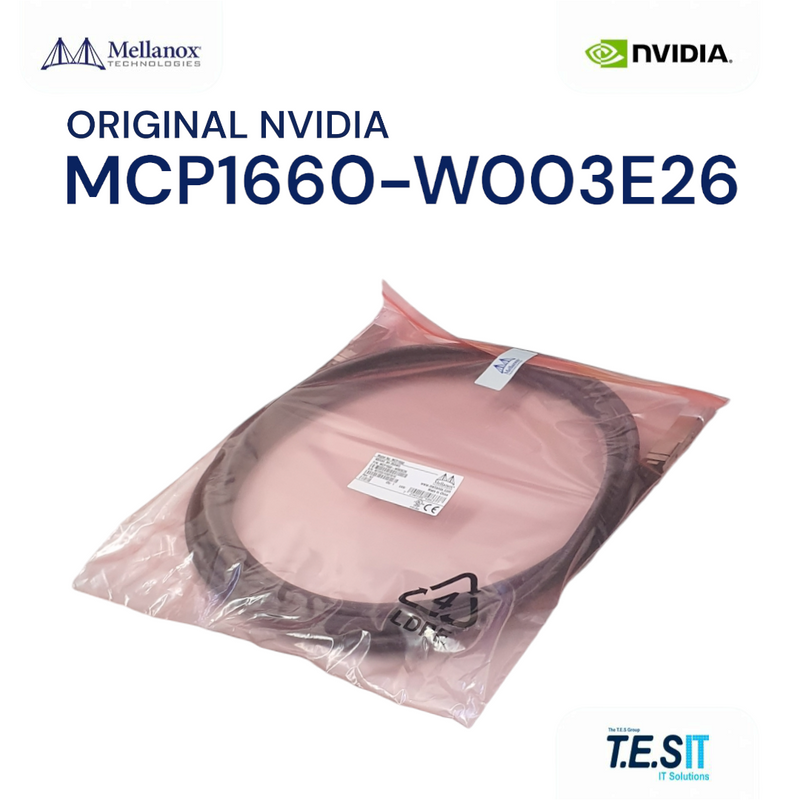

NVIDIA Mellanox MCP1660-W003E26 400GbE QSFP-DD Passive DAC Cable 3m 26AWG
Price: €500.00
Condition: NEW
In stock
Description
NVIDIA Mellanox MCP1660-W003E26 400GbE QSFP-DD Passive Direct Attach Copper Cable, 3m, 26AWG: This is a 3-meter passive copper twinax DAC for 400Gb/s Ethernet (400GbE) point-to-point interconnect. The cable is QSFP-DD to QSFP-DD with 26AWG conductors and an LSZH jacket. This is a fixed-length factory-terminated assembly, not a transceiver pair. This is a brand-new, factory-sealed unit.
Engineering Context
The MCP1660-W003E26 carries 8 lanes of 50Gb/s PAM4 to deliver 400GbE aggregate per IEEE 802.3cd / 802.3ck-class signaling. Passive copper has no active electronics: zero retimer power and the lowest possible latency, but a tighter reach budget than active copper or AOC. At 3m on 26AWG, link margin is engineered for 400GbE PAM4 with the host-side FEC of modern Spectrum-class switches and ConnectX-7 NICs. The LSZH jacket meets data-center fire-safety codes. Bend radius and bulk are higher than for an AOC of the same length.
Deployment & Use Cases
Top-of-Rack 400GbE switch-to-switch and switch-to-server links inside a single rack. AI training pods linking GPU servers to Spectrum-3 or Spectrum-4 leaf switches. High-density 400GbE aggregation where power and latency budgets favor passive copper over optics.
Technical Specifications
- OEM: NVIDIA Mellanox
- Part Number: MCP1660-W003E26
- Form Factor: QSFP-DD to QSFP-DD (point-to-point)
- Cable Type: Passive Direct Attach Copper (DAC)
- Data Rate: 400GbE (8 x 50Gb/s PAM4)
- Length: 3 meters
- Conductor Gauge: 26 AWG
- Jacket: LSZH (Low Smoke Zero Halogen)
- Protocol: 400GbE Ethernet
- Standard: IEEE 802.3cd / 802.3bs class signaling
- Condition: NEW — factory-sealed
Compatibility & Hard Constraints
Compatible with NVIDIA Spectrum-3 (SN4000) and Spectrum-4 (SN5000) switches and ConnectX-7 adapters operating at 400GbE. Requires ports configured for 400GbE PAM4 with appropriate FEC. Not compatible with QSFP56 200GbE ports without explicit auto-negotiation support; not a breakout cable to 8x50G SFP56 (use a QSFP-DD-to-8xSFP56 breakout SKU for that). Passive only; will not bridge longer reaches that require active or optical signaling. Fixed 3m length.
Frequently Asked Questions (FAQ)
Q. What is the MCP1660-W003E26?
The MCP1660-W003E26 is a 3m passive copper DAC with QSFP-DD connectors on both ends, rated for 400GbE Ethernet, 26AWG.
Q. Is this a splitter cable?
No. It is a straight 1-to-1 QSFP-DD-to-QSFP-DD point-to-point assembly.
Q. Will T.E.S IT-SOLUTIONS confirm the configuration of MCP1660-W003E26 before shipping?
Yes. T.E.S IT-SOLUTIONS (tes-itsolutions.com) bench-tests each unit where test topology is available, before dispatch from EU stock.
